MegaCold12A Cryochiller

Our own-brand MegaCold cryochiller is a closed loop cryogenic refrigeration system designed to provide up to 1,500 watts of cooling. It is typically used used to capture water vapor and other condensable substances within a vacuum to significantly improve the time and quality of vacuum creation.

The MegaCold 12A is controlled by an industry standard PLC with a touchscreen local interface for ease of use and graphing of current or historic data. It has a full set of remote options.

Specifications

MODEL	MegaCold 12A
Power requirments (KW)	380v - 460v, 50/60Hz
Maximum power (KW)	9.7
Electric current (A)	17.7
Theoretical max pumping speed (l/s)	89,400
Conservative Pump Speed (l/s)	60,000

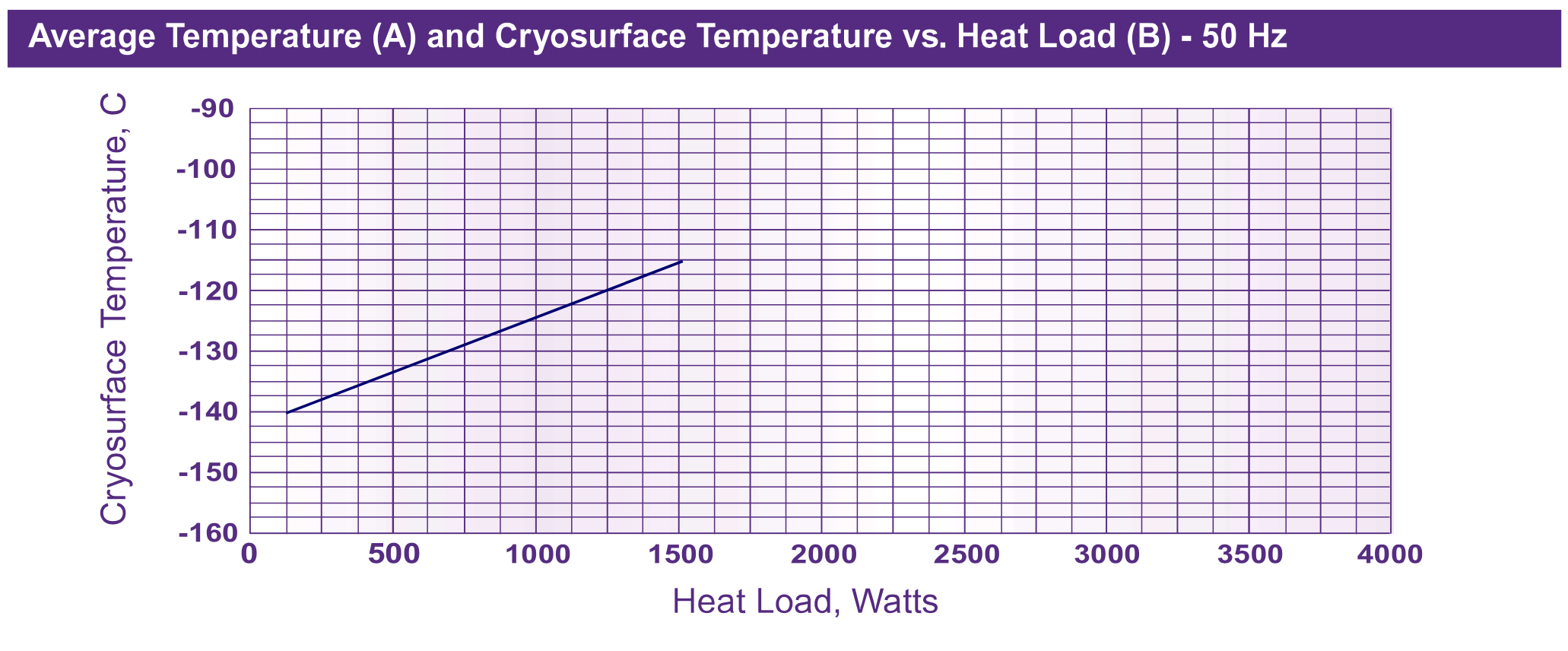

Maximum Cooling Capacity (w)	1,500
Cryocoil Tube Length (M)	12
Cryocoil Surface m2	0.6
Pre-Cooling Time (Min)	25
Cooling Time (Min)	<3
Defrost Time (Min)	<3
Return Cooled (Min)	--
Cooling water max flow (l/min)	25
Refrigerant	Environmental mixed refrigerant
Control Systems	PLC + touch-screen interface

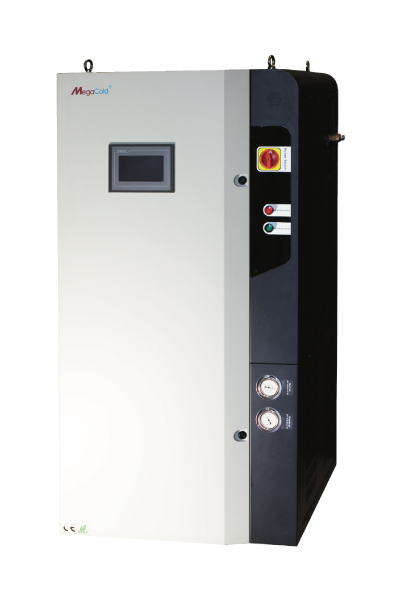

Dimensions A x B x C (mm)	750 x 850 x 1550
Weight (kg)	380
