Wafer Carriers

Wafer Carriers

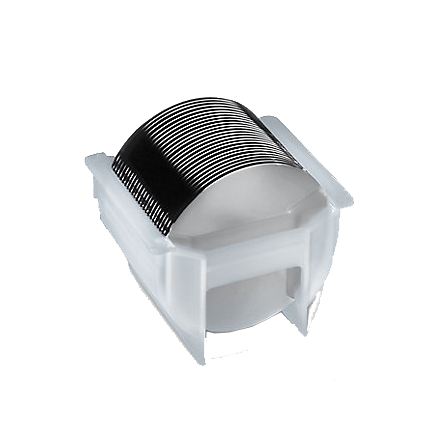

Our traditional molded PFA process wafer carriers and modular construction PFA process enhancement wafer carriers are designed for wet chemical processing applications in 200 mm fabs.

  • The open flow carriers allow solutions to pass through evenly and quickly
  • Constructed of chemical-resistant PFA material enables your process to remain uncontaminated, maintaining chemical integrity

Purchase now on our webshop here

Enquire about this Product

Wafer Carriers Part Numbers

PART NUMBERS

200mm Process Wafer Carriers Part Numbers

PART NUMBERPRODUCT TYPEWAFER CAPACITYPROFILEEND WALL HANDLE TYPEEND WALL FLANGE TYPESIDE WALLTOP FLANGESROTATED RAILEND WALL CONFIGURATION
A192-80M-0215Process wafer carrier25HighStandard, high positionStandard outboardOpenNoN/ASolid
A192-80MNH-0215Process wafer carrier25HighN/AStandard outboardOpenNoN/ASolid
A192-80MU1-0215Process wafer carrier25HighN/AStandard outboardOpenNoN/A"U" shaped
A192-81M-0215Process wafer carrier25LowN/AStandard outboardOpenNoN/ASolid
A192-81MJ26-HP0215Process wafer carrier26LowStandard, high positionNotched wide outboardOpenNoN/ASolid
A192-82M-0215Process wafer carrier50Low

Technical Specifications



MaterialsPFA
Temperature limitsContinuous use (process enhancement)165°C (329°F)
Continuous use (traditional)180°C (356°F)
Wafer insertion290°C (554°F)
Wafer capacityProcess wafer carrier25, 26, or 50
 Process enhancement wafer carrier50
