Matching Networks
Impedance Matching Networks

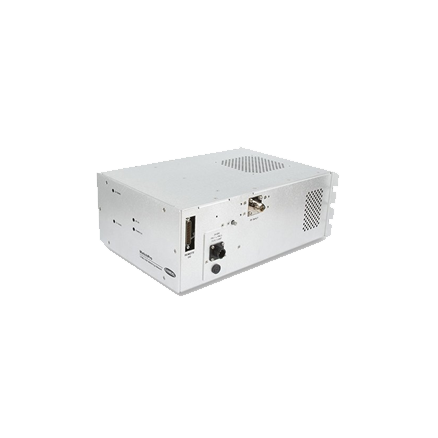

Match Pro Matching Networks
Fast Tuning and Fine Tune Resolution Deliver Repeatable Process Results
Custom Designs to Fit Your Specific Application
Performance
All Match Pro impedance matching networks are engineered with XP Power's unique PROTRAK, a high-speed tuning algorithm that gradually slows the system as it approaches the tuning point, allowing a precise match even in high "Q" loads. This proportional control circuitry illustrates the critical difference between XP Power's Match Pro and other matching networks. The Match Pro adjusts input impedance to 50 Ohms quickly, accurately and dependably—in response to the changes in load characteristics during your process. The Match Pro operates over a power range from 50 to 50,000 Watts.
Features
Automatic and manual modes with local and remote manual control of tuning capacitors
Ability to pre-position capacitors to optimal plasma ignition point prior to turn on, resulting in quick and reliable tuning
Capacitor position outputs to show where the match occurs from process to process
High power, H-bridge, Mosfet motor drive circuitry is conservatively rated for improved reliability
Optional BLDC motors and drive for improved motor life cycle
Optional DC Bias and RF VP-P detector circuits available
