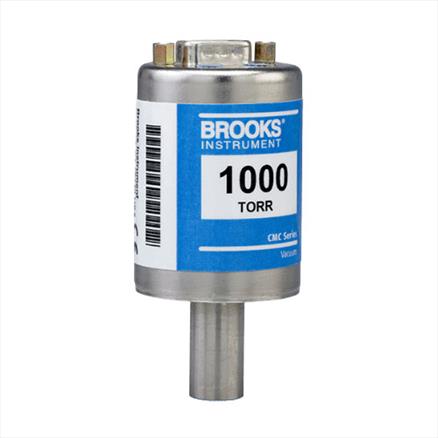

Brooks CMC Series Capacitance Manometers

Brooks CMC Series Capacitance Manometers

CMC Series capacitance manometers from Brooks Instrument deliver reliable, accurate vacuum measurement over a wide range of operating temperatures, providing an economical alternative to larger premium unheated gauges. Its compact design and proven performance make it an ideal upgrade for existing tools needing a small form-factor gauge.

Reliable and repeatable operation is assured in even the most aggressive processes through the all-welded design and Iconel® wetted surfaces. The combination of precision components and a wide temperature compensated operating range lets Brooks deliver best-in-class zero and span temperature coefficients for optimum measurement stability.

Enquire about this Product


  • Available for process ranges from 10 Torr to 1000 Torr
  • Two accuracy levels available: 0.25% or 0.50% of reading (optional)
  • Exceptional performance over a wide range of operating temperatures
  • 40% smaller than traditional unheated capacitance manometers
  • All-welded construction and Inconel® wetted surfaces



  • Optional high accuracy calibration matches the accuracy of more costly premium unheated manometers
  • Best-in-class zero and span temperature coefficients
  • Space-saving design helps fit device into tight machine spaces
  • Optimum measurement repeatability compared to other designs that are prone to error inducing internal stresses



  • Semiconductor fabrication
  • Thin-film deposition processes – glass, web and optical coatings
  • Freeze drying perishable materials
  • High-tech coatings for medical instruments (surgical instruments, dental drills, etc.)
